HXAM - HXAB SERIES HI-MISALIGNMENT MALE
BODY: 4130 steel alloy (chrome moly) heat treated, protective coated for corrosion resistance.
RACE: Steel alloy, heat treated, protective coated for corrosion resistance, (low carbon steel with PTFE liners.)
BALL: 52100 steel, heat treated, hard chrome plated.



.



HXAM - HXAB Series High Strength Alloy - Precision

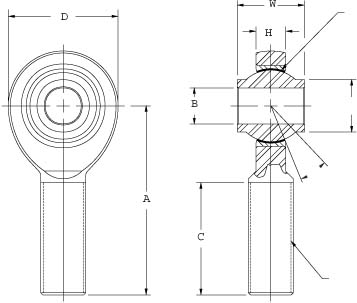

HXAM - HXAB Series B Thread W H A D Radial Static Load Price
HXAM-4T

.2500

3/8-24

.375

.250

1.562

.750

5,260

$47.95
HXAB-4T

.2500

3/8-24

.375

.250

1.562

.750

5,260

$47.95
HXAM-5T

.3125

7/16-20

.437

.312

1.875

.875

7,639

52.95
HXAB-5T

.3125

7/16-20

.437

.312

1.875

.875

7,639

52.95
HXAM-6T

.3750

7/16-20

.500

.359

1.938

1.000

9,544

47.95
HXAB-6T

.3750

7/16-20

.500

.359

1.938

1.000

9,544

47.95
HXAM-7T

.4375

1/2-20

.562

.406

2.125

1.125

10,285

54.95
HXAB-7T

.4375

1/2-20

.562

.406

2.125

1.125

10,285

54.95
HXAM-8T

.5000

5/8-18

.625

.453

2.438

1.312

16,238

69.95
HXAB-8T

.5000

5/8-18

.625

.453

2.438

1.312

16,238

69.95
HXAM-10T

.6250

3/4-16

.750

.484

2.625

1.500

17,955

89.95
HXAB-10T

.6250

3/4-16

.750

.484

2.625

1.500

17,955

89.95
HXAM-12T

.7500

7/8-14

.875

.593

2.875

1.750

28,081

109.95
HXAB-12T

.7500

7/8-14

.875

.593

2.875

1.750

28,081

109.95



HXAM Right hand
HXAB Left hand
