72663

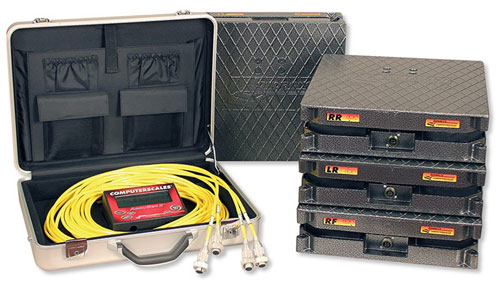

Heavy Capacity System with Expanded Range Control Box
3500 lbs. per pad, 14,000 total - Great for heavier vehicles

  • Expanded range AccuSet™ control box - 1,4000 lbs.
  • Heavy duty yellow 24' cables with billit AN connectors
  • Face3 is slanted for easier viewing
  • Max capacity of 3,500 lbs. per pad
  • Includes heavy duty carrying cse for electronics and cables
  • 2 year limited warranty
  • Saves time writing it down
  • 1 slot memory is handy and easy to use
  • Store your baseline setup in memory
  • Recall it instantly to compare to the current setup



Simple to use - just push a buttons to get everything you need!
- Push one button for all 4 wheel weights plus Cross Weight
- Push a second button for all partial %

Simple, uncluttered display – No unneeded information

RPS-3072663

3500 lbs. Powder Coated Pads

$3,495.00

RPS-3072667

3500 lbs. Single Cell CNC Pads

3,945.00

RPS-3072669

6000 lbs. Duel Cell Billit Pads

5,945.00



Shows all 4 cross weights plus cross Optional partial % display, incl front and rear
Optional wheel weight display - Incl. total Push one button and see all your partial %



Satin Finished Scale Pads
These new pads have a proprietary Satin finish and are flat to within .010". (Set of 4 included)

LMF™ - Liquid Metal Forging
Most of our scale pads are produced by this new state-of-the-art process that gives high material strength plus allows intricate internal ribs
that give you as rigid a pad as possible for the most accurate weights.

METRIC OPTION: The DXI control box is user switchable to metric readings. Please use the comments section of the order form if you
require metric and we'll make sure it gets switched for you.

2 year limited warranty
