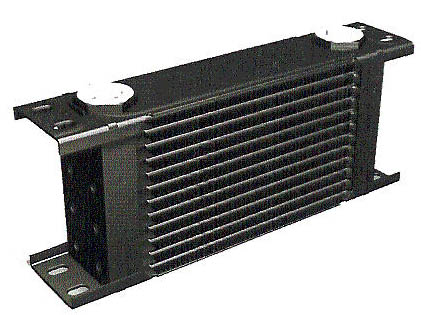

Setrab aluminum oil
coolers are fitted by vehicle manufactures demanding high
performance and quality. The coolers are used on all types of
vehicles, from earthmoving machines to racing cars. The range
also includes coolers for hydrostatic systems and special designs
for a wide field of applications.
Setrab oil coolers are manufactured
by a unique method which makes it possible to produce the various
sizes without time-wasting and costly tool changes. Even very
small series can be delivered quickly, with no extra charge for
tooling costs.
800 Different Sizes: The
standard range of coolers comes in 9 different lengths, 8.25"
to 15.94" in 1" steps. The number of tubes available
is from 3 rows to 90 rows which gives a height from .787" to
27.55". The depth or thickness is 2" in all
cases. The coolers can be supplied with a wide range of
connectors. The coolers sizes are determined by the Series of
cooler. Series 1, is the shortest cooler, to Series 9, being
the longest. |
