All SPA Design dual instruments come
in light weight 2" diameter cases and are black anodized finished. The pressure
and temperature gauges supplied with sensors 1/4" bsp thread. All these dual
electronic gauges have the following features: |
SPA DUAL SERIES GAUGES |
|
- Selectable
backlight colour (Red, Green, Blue, Amber, Magenta, Cyan, White,
Off)
- Adjustable
backlight brightness
- Black
or white dials
- Standard
Black
- High
resolution modes for 0.1 PSI(BAR), Deg F(C) etc
- Programmable
button function, recall menu etc
|
- Splash
proof sensor connections
- Extended
temperature operation (for extreme climates) -20 to +70 Deg C
- Stainless
steel pressure and vacuum sensors
- Programmable
warning lights, low battery, averaging etc
- Programmable
backlight flashing as a warning
- Programmable
outputs for driving external LED's or relays
- Thermocouple
options and kits available
Description |
Part No. |
Price
|
Oil
Pressure / Water Temperature |
DG300 |
$394.95 |
Oil
Pressure / Oil Temperature |
DG301 |
394.95 |
Fuel
Pressure / Water Temperature |
DG302 |
394.95 |
Water
Temperature / Oil Temperature |
DG303 |
376.95 |
Volts
/ Water Temperature |
DG304 |
321.95 |
|

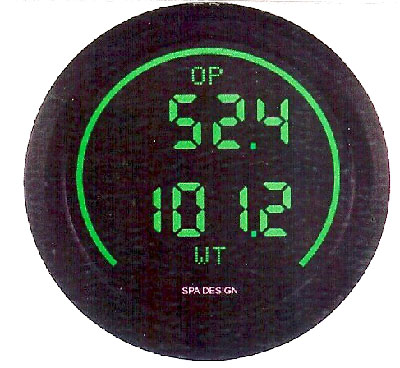

SPA SIGNATURE SERIES
GAUGES |
-
Changing
color backlight to flashing the outer ring for an eye catching
warning in case of a hitting a critical parameter
-
A
new feature of these gauges is programmable text characters, 4
characters per channel
-
All
gauges are supplied with standard characters to define the
channel, these may be changed by the end user
|
|
-
Red,
pure green, blue, amber, magenta, cyan and white selectable
backlight
-
Programmable
high and low LCD color alarm settings for each channel
-
Adjustable
backlight brightness
-
High
resolution modes for, F°, °C etc.
-
Programmable
button function, recall and menu etc.
-
Extended
temperature operation (for extreme climates) -20 to +70°C
-
Programmable
warning text (flashing), low battery warning
-
Programmable
outputs for driving external LEDs or relays
-
Selectable
units for temperature
-
Contrast
adjust
|
All kits supplied as a
complete package including, gauge, wiring harness, and necessary
sensors |
Description |
Part No. |
Price
|
Oil
Pressure / Water Temperature |
SS300 |
$394.95 |
Oil
Pressure / Oil Temperature |
SS301 |
394.95 |
Fuel
Pressure / Water Temperature |
SS302 |
394.95 |
Water
Temperature / Oil Temperature |
SS303 |
376.95 |
Volts
/ Water Temperature |
SS304 |
321.95 |
|
