Engine Information


Float Level Adjustment.jpg (9020 bytes) It is essential that the following directions be complied with in order to obtain correct leveling of the float:
The float level, expressed in millimeters, refers to the distance of the float from the face of the carburetor cover when the top is held vertical with the float pivot at the top and the float tab resting against, but not compressing, the spring-loaded ball in the needle valve.
To adjust the float level, the tab should be carefully bent until the required dimension is achieved.  Float stroke is the dimension from the top cover to the bottom of the float when the float is at the bottom of it's travel.  Adjust this dimension by bending the tab.

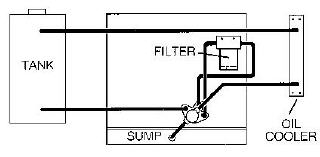

Ford 1600 Oil Flow

Ford 2000 Oil Flow

Oil Flow 1600.jpg (8626 bytes)

Oil Flow 2000.jpg (19102 bytes)
