Heavy Duty Switches

TOGGLE SWITCH

These high quality switches are rated at 40 amps.  All contacts are silver plated with solid brass mechanisms. The mounting bushing 15/32" diameter and 1/2" long.  The body measures 1.14" x .625" x .625". The kit comes complete with a toggle switch, a silicone rubber weatherproof switch cover and 2 terminals.

Part # Item Price
L-4104542 Assembly

$10.50

L-4104543 3 terminal

13.50

L-41045462 Momentary

12.25

L-4104530 Silicone Boot

4.75

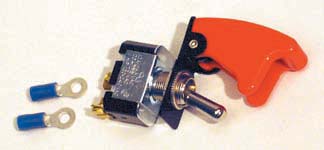

SWITCH WITH FLIP-UP COVER

This is the same switch (see left), only with an aircraft designed Military Switch Guard.  The guard prevents accidental switch actuation.  The guard is also sold separately, so you can use it with any toggle switch.  The kit comes complete with  a toggle switch, a aircraft safety switch cover, and 2 terminals.

Part # Item Price

L-4104547

Assembly

$17.95

L-4104537

Cover Only

10.50

IGNITION/START SWITCH COMBINATION


Down is off, Up is momentary On.
Includes pre-wired with color coded harness and flip-up switch cover.  1 switch does it all.



L-414549 $30.99

STARTER BUTTON

Momentary starter switch, stem 3/4" long, 5/8" diameter with 2,  #8 screws.
Optional weatherproof boot available.



Part # Item Price
L-390000

Button

$5.99

L-39010

Boot

3.99

LONGACRE STARTER BUTTON

This high quality 40 amp starter button mounts in a 5/8" diameter hole.  This is the same starter button that Longacre uses in their pre-wired panels .  The kit includes a weatherproof rubber cover and 2 solderless ring terminals.



L-394546 $9.25



IN-LINE FUSE HOLDER

Protect your circuits with this this compact fuse holder.  It is designed for any ¼" x 1¼" AGC, 32 volt  fuses.  Rated at 20 amps, the fuse holder has 14 gauge leads which splice into your circuit.
L-64600 $2.49
